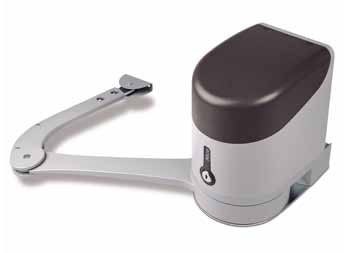

NICE Hyke side view

Nice Hyke

FOR SWING GATES WITH LEAVES UP TO 3.5 M, IDEAL FOR LARGE COLUMNS

Irreversible electromechanical 24 Vdc gear motor with articulated arm, surface mounted.
Ideal for intensive use.

SKU: HK7224* Category:

Product Description

Reliable
Durability thanks to the housing in aluminium with polyester paint finish, resistant to atmospheric agents.
Ultra-powerful
Thanks to the torque of 500 Nm and encoder technology, for millimetric precision and reliability.
Safety in movement with dual technology obstacle detection.
Two 24V versions
Limit switches on opening and closing: with built-in control unit (HK7024) and without control unit (HK7224).
Quick Installation
The articulated arm is adjustable in length for maximum flexibility.
Simple and precise
Mechanical stops and micrometric adjustment screws.
Easy release lever
Metal lock and personalised Nice key. Provision for cable control.
Savings
When connected to the buffer battery or Solemyo kit, consumption on standby is just 0.1 W.
No black out
Optional batteries (PS124) housed inside the gear motor.

*Also available in 230V version HK7024

Specifications

Weight 9.5 kg
Dimensions 290 x 210 x 320 mm
Voltage

24 DC

Amperage

6

Wattage

140

Speed

2.25

Force (N)

500

Duty Cycle (Cycles/Hour)

40

Protection Level (IP)

54

Working Temp °C (Min/Max)

-20°C – 50°C

Manufacturer

Nice

  NICE HYKE Product Brochure
