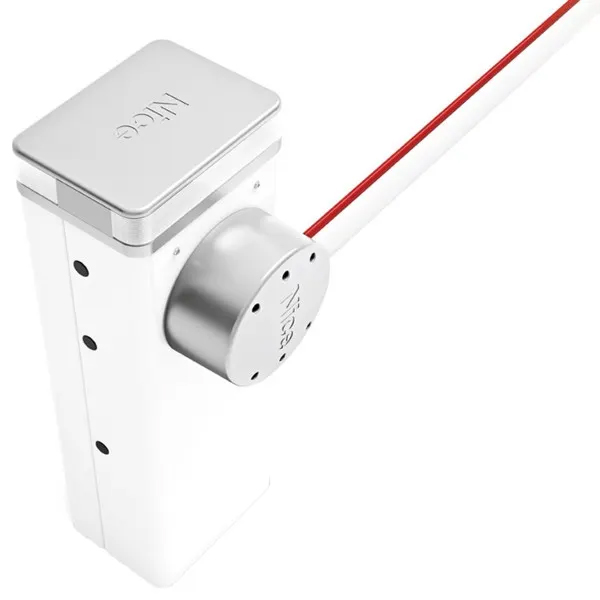

NICE Mbar

ELECTROMECHANICAL ROAD BARRIER SYSTEM FOR CONTROL OF ROAD ACCESS

24Vdc gear motor with built-in control unit and loop detection

SKU: M5BAR/V1 Category:

Product Description

Modular
Easily assembled using the aluminum expansion joint
Possibility for intelligent control of two opposing automations thanks to master/slave function
Strength and Reliability
Robust structure in steel, new high strength balancing springs guaranteed up to 1,000,000 openings and closing operations and elliptical section bar with high wind-gust resistance.
Optional flashing or traffic light can be integrated in cover.
Encoder movement control and electromechanical limit switches.
More comfort and safety in programming and maintenance phases
Separate enclosures for electronics and mechanics protect internal parts from potential risks
Rapid and Easy Access
Easy access to the control unit located in the upper section of the barrier body
Simple fixture of the completely concealed photocells into the specially designed seats on the barrier body
More Safety and Reliability
Obstacle detection and monitoring of motor absorption during automation movement.
Automatic fault diagnostics during operation with consequent signalling of fault type through specific flash sequences.
Provision for connection of latest generation optical and resistive sensitive edges (with 8.2 KOhm resistance.)
Energy Saving
The system sets to standby when not in use to save consumption.
No Blackouts
Emergency backup power with the optional batteries housed in inside the case.
Side release with metal key
Can be installed on either side

Specifications

Weight 80 kg
Dimensions 400 x 299 x 1215 mm
Voltage

110

Amperage

1.1

Wattage

110

Speed

3 / 6

Force (N)

200

Duty Cycle (Cycles/Hour)

350

Protection Level (IP)

44

Working Temp °C (Min/Max)

-20°C – 50°C

Manufacturer

Nice
